Photoresist material
Photoresist materials are useful in producing items such as computer chips and other electronic products. Photolithography is the process of using these unique materials. Semixlab photoresist material and How They Are Used in The Semiconductor Industry Let’s Look More Closely.
Various materials sensitive to light are known as photoresist materials. They are utilized to allow patterns to be transferred to silicon wafers in the semiconductor industry. When you shine light on these materials, they respond so that they either dissolve or remain unchanged in certain chemicals. This allows manufacturers to make intricate patterns on semiconductor materials with a great deal of precision.
The role of photoresist material in photolithography
Photolithography is a technique for patterning of silicon wafers. This is followed by spreading of photoresist over the wafer. They are then illuminated with light through the mask, which bears the desired pattern. The underlying exposed or not exposed parts of the photoresist will, depending on the type of photoresist used, be dissolved or remain in a solid condition. Following development and removal of the unexposed regions, a pattern remains on the silicon wafer.
Three, positive and negative are the two types of Semixlab arf photoresist material. When a positive photoresist is exposed to light, it is made soluble in a developer solution, while negative photoresists remain unaffected. Positive photoresists are conventionally used for fine patterning, and negative photoresists are simple to handle and are good in adhesiveness.
-

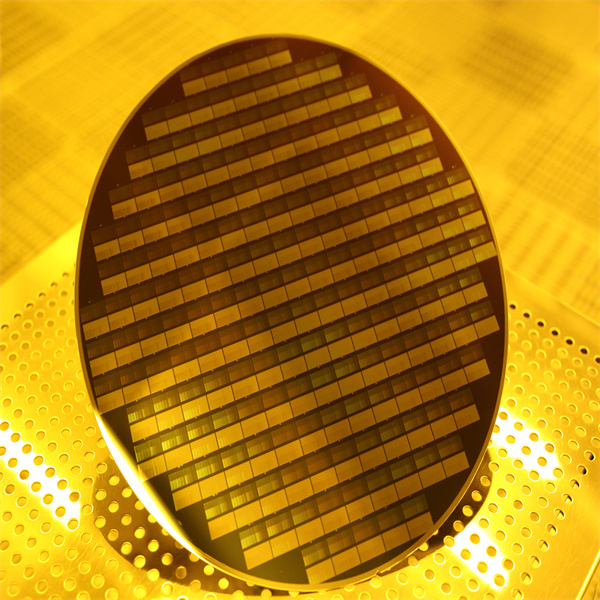

Types of photoresist materials and their applications
One of the major advantages of photoresist materials is the ability to generate extremely precise patterns. That allows manufacturers to design smaller, more powerful electronic devices. Photoresist material is also inexpensive and user friendly, and therefore widely used in the semiconductor industry.
-

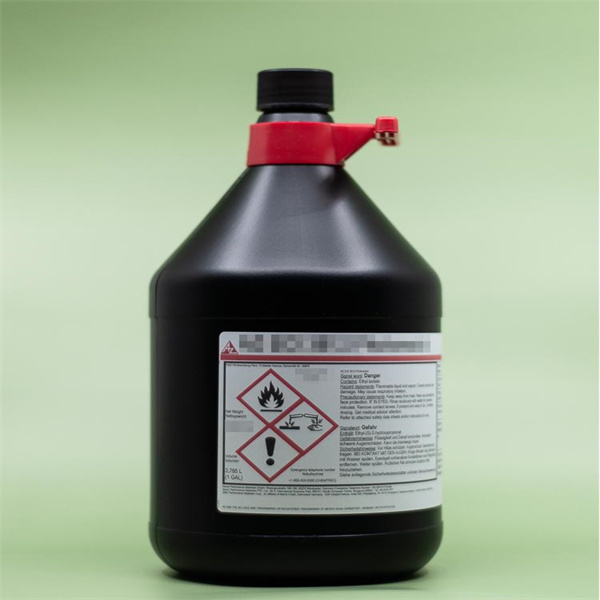

Advantages and limitations of using photoresist material
Photoresist materials have developed very rapidly in recent years with many new developments that have made the processes of photolithography much better and faster. And new kinds of polymers have been developed that would be more sensitive to light. That means they can be exposed faster, which is quicker (and therefore cheaper) to do.
-

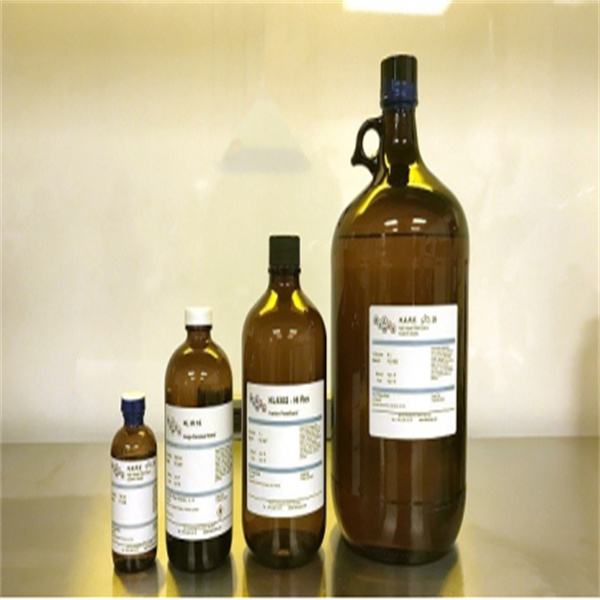

Innovations in photoresist material technology in the semiconductor industry
What’s more, new developments in nanotechnology have resulted in better Semixlab photoresist materials which hold well and are resistant to the environment. These new substances can be used to build electronics that are smaller, faster and more powerful than those in use today.
Why choose Semixlab Photoresist material?
Not finding what you’re looking for?
Contact our consultants for more available products.
