Silicon Carbide Ceramic Arms

Name: Silicon Carbide Ceramic Arms
Brand: Semixlab
Availability: InStock
Rating: 4.7 (19 reviews)

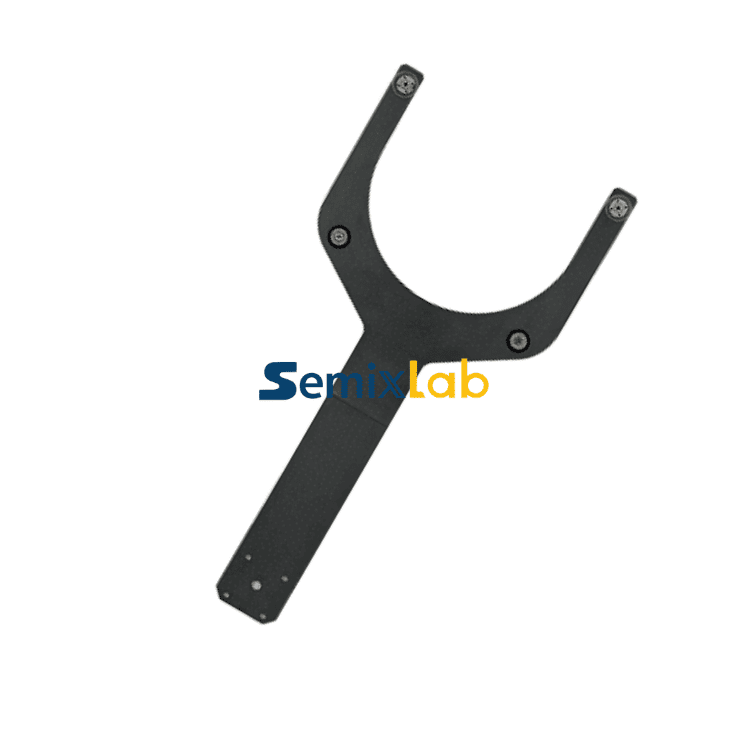

The Semixlab Silicon Carbide (SiC) Ceramic End Effector is a next-generation wafer handling component engineered for 300mm (12-inch) wafer manufacturing and advanced nodes (<7nm). Crafted from high-purity, fully densified SiC with ultra-precision diamond grinding. Designed to minimize settling time, eliminate residual vibration during high-speed moves, and prevent particle contamination, Semixlab SiC Arms empower semiconductor OEMs and Fabs to maximize machine WPH (Wafer Per Hour) and overall Yield.

INQUIRY

Description

Product Overview

As semiconductor chipmaking advances into 3nm/2nm logic nodes and high-density 3D NAND architectures, wafer transfer systems face extreme challenges regarding particle control, cantilever deflection, and vibration settling time. Traditional aluminum alloys and alumina ceramic arms fall short in high-frequency, high-temperature, and corrosive plasma environments.

Semixlab Silicon Carbide (SiC) Ceramic End Effectors are fabricated using high-purity reaction-bonded/recrystallized SiC, processed via state-of-the-art diamond precision machining and intricate micro-channel routing. Acting as the ultimate "skeleton and fingertips" for wafer handling, Semixlab SiC Arms significantly reduce Wafer Swap times, eliminate particle shed, and maximize machine Throughput and Yield across Lithography, Etch, CVD/ALD, and Thermal Processing equipment.

Key Advantages & Features

1. Ultra-High Specific Stiffness for Sub-Micron Settling

Featuring a Young's Modulus of 420 ~ 450 GPa and a lightweight density >3.10g/cm3, Semixlab SiC offers superior specific stiffness compared to Alumina and aluminum alloys. Residual vibration during high-speed Pick & Place operations is virtually eliminated, reducing settling time by over 60% and enabling maximum WPH.

2. Outstanding Plasma & Chemical Corrosion Resistance

In the presence of aggressive etch gases (such as NF3, CF4, Cl2) and high-energy reactive plasma, Semixlab SiC exhibits near-inert chemical stability. It eliminates surface degradation and flaking, protecting sensitive wafers from metallic ion (Al, Fe) and micro-particle contamination.

3. High Thermal Stability & Zero Thermal Deformation

With a low coefficient of thermal expansion (CTE) that closely matches single-crystal silicon, combined with superior thermal shock resistance, Semixlab SiC arms maintain sub-micron dimensional stability without creeping or warping when entering 400 C ~ 1000° C+ process chambers or during Rapid Thermal Processing (RTP).

4. Custom Micro-Fluidic & Vacuum Clamping Designs

Supports vacuum chucking, Bernoulli non-contact handling, and Edge Grip (EBR) configurations. The dense, pore-free ceramic structure allows internal micro-airways to be integrated without vacuum leakage or pressure loss.

Why Choose Semixlab?

1. Vertical Integration: From Raw Powder to Precision CNC Grinding

We own end-to-end manufacturing capabilities—from proprietary high-purity SiC formulations and sintering techniques to multi-axis CNC diamond grinding, enabling us to machine complex internal micro-fluidic vacuum channels.

2. Rigorous Quality Assurance & Zero-Particle Cleanroom Packaging

Equipped with Coordinate Measuring Machines (CMM), non-destructive testing (NDT), and surface profilometers. All components undergo ultra-high-purity ultrasonic cleaning in Class 10/100 cleanrooms and are vacuum-sealed for immediate plug-and-play installation.

3. Agile Co-Design & Rapid Prototyping

Whether you are a global OEM developing next-generation tools or a Fab seeking second-source/localization solutions, Semixlab offers finite element analysis (FEA) simulations within 48 hours and rapid prototype delivery in 2 to 3 weeks.

Specifications

Below are standard specifications. Semixlab offers fully customized OEM/ODM design and manufacturing services tailored to your specific tool requirements:

Parameter	Specification Value	Test Standard / Notes
Material	High-Purity Densified SiC	Purity > 99.5%
Density	>3.10g/cm3	Bulk density
Young's Modulus	420 ~ 450 GPa	Room Temperature
Flexural Strength	>450 MPa	4-point bending method
CTE (Coefficient of Thermal Expansion)	4.0~4.4x10-6/K	20°C ~ 1000°C, matchingSi
Thermal Conductivity	>120 W/m`K	Uniform heat distribution
Operating Temperature	-196°C to 1400°C	Vacuum / Inert gas atmosphere
Surface Roughness	Ra ≤0.2 um	Polished to mirror finish upon request
Flatness / Straightness	< 0.02 mm (Full length)	Ultra-precision diamond grinding
Wafer Size Compatibility	200mm (8") / 300mm (12") / 450mm	Panel-Level Packaging (PLP) supported

Applications

Target Application Scenarios

Semixlab SiC Ceramic Arms are fully integrated into mainstream front-end semiconductor processing equipment:

Lithography & EUV Systems: Used in EUV / ArFi scanners and EFEM modules. Ultra-high stiffness minimizes residual vibration during transfer to ensure maximum alignment accuracy and throughput.

Dry Etch Chambers: Used as transfer arms between Loadlock and Main Chambers. Resists direct plasma bombardment and halide gases, preventing etch-induced particle generation.

Thin Film Deposition (CVD / ALD / PVD): Reaches directly into 400° C ~ 800° C vacuum deposition chambers without thermal warping or vacuum leakage through internal channels.

Thermal Processing (RTP / Diffusion / Anneal): Withstands extreme heating/cooling rates (> 100° C/sec). Maintains flatness at 1000°C+ to prevent wafer slip and warpage.

Wet Cleaning & CMP: Resists aggressive acids (SPM, HF) and abrasive slurry chemicals, avoiding cross-contamination during wafer handling.
